H690 TNKX 160610PNTR IC330
Milling Insert; H690TNKX160610PNTR 330
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC330 |
| Application | | Facing | Shouldering | Slotting | | Shape | Round |

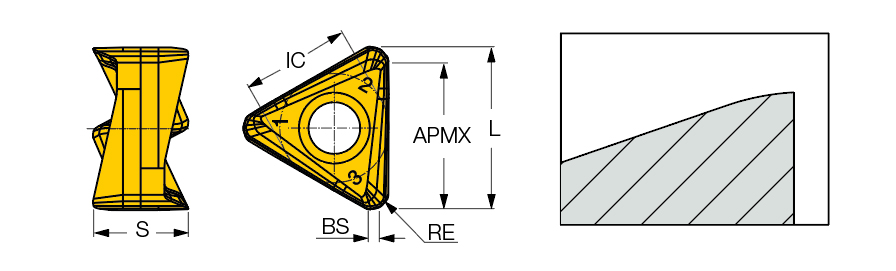

| Insert Length (INSL) | 0.689″ | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Corner Radius (RE) | 0.0394″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.531″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.394″ | Number of Cutting Edges | 6 |
| Wiper Edge Length (BS) | 0.028″ | Cutting Edge Effective Length (LE) | 0.531″ |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
Product Features
| Family Description | Triangular inserts with 6 helical cutting edges for 90° general use applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.034
