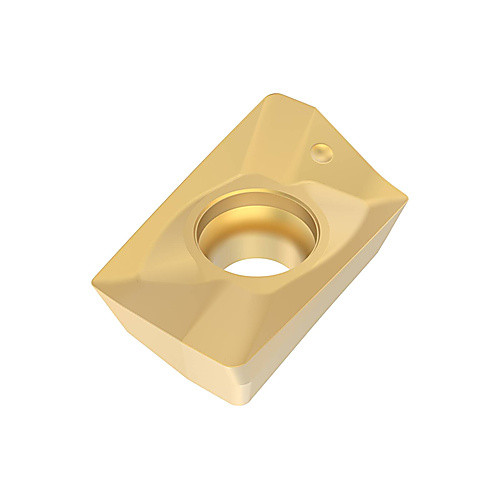

XOMX 180650R-M10 GRADE F40M INSERT
Milling Insert; 19.38 mm Length × 11.2 mm Width × 6.42 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 19.38 mm | Shape | Parallelogram |
| Corner Radius (RE) | 5 mm | Insert Style | XOMX |
| Depth of Cut Maximum (APMX) | 0.65″ | Insert Size | 180650 |
| Insert Width (W1) | 11.2 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.4409″ | Chip Breaker Type | M10 |
| Insert Thickness (S) | 6.42 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 22 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
.40000
Package Width
.30000
Package Height
.10000
Package Weight
0.026
