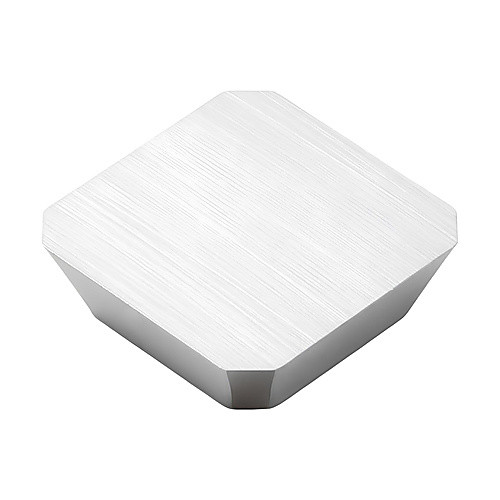

SEKN1504AFN-E15 GRADE HX INSERT
Milling Insert; 15.87 mm Length × 15.88 mm Width × 4.76 mm Thickness ; HX ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | HX |
| Cutting Edge Length (L) | 15.87 mm | Shape | Square |
| Corner Radius (RE) | 1.6 mm | Insert Style | SEKN |
| Depth of Cut Maximum (APMX) | 5/8″ | Insert Size | 1504 |
| Insert Width (W1) | 15.88 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 15.87 mm | Chip Breaker Type | N |
| Insert Thickness (S) | 4.76 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 20 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.031
