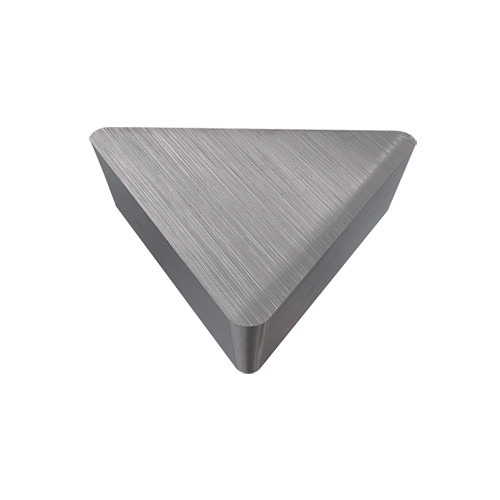

TPU 322 IC20
Milling Insert; TPU322 IC20 IC20 × 1/8″ Thickness ; Carbide ; Uncoated
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | IC20 |
| Application | | Facing | Shouldering | Slotting | | Shape | Triangle |

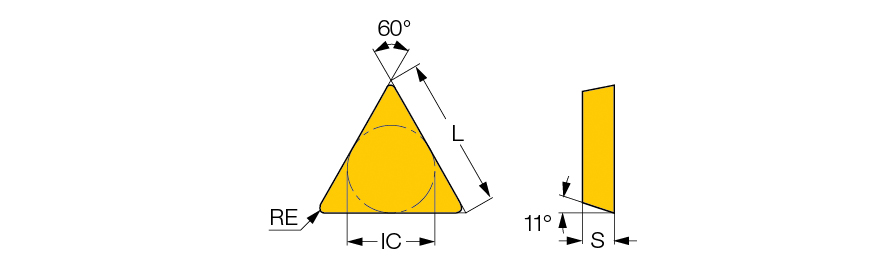

| Insert Length (INSL) | 0.63″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 3/8″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Triangular positive inserts with a flat rake, used for short chipping materials | Country of Origin | Israel |
Shipping Info
Package Weight
0.013
