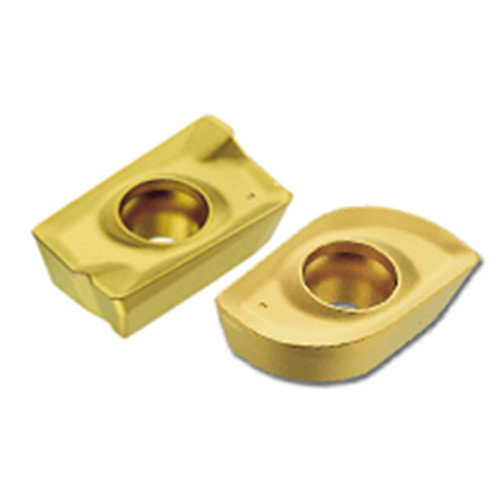

APKT 160416R-HM IC328
Milling Insert; 16.7 mm Length × 9.45 mm Width × 5.3 mm Thickness ; IC328 ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Countersinking | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |

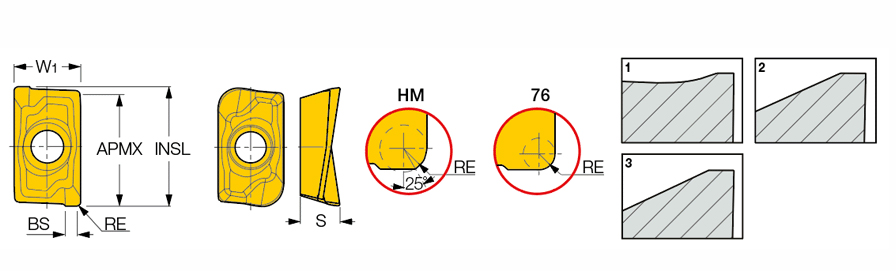

| Cutting Edge Length (L) | 16.7 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.7 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.7 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 14 mm | Figure | 2 |
| Insert Width (W1) | 9.45 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 5.3 mm | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0 mm | Cutting Edge Effective Length (LE) | 15.25 mm |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IC328 | Body Material | Carbide |
Product Features
| Family Description | Milling inserts with a 16 mm cutting edge length and positive rake angle for general use. | Country of Origin | Israel |
Shipping Info
Package Weight
0.018
