HM90 APCR 220605-CS IC28
Milling Insert; 1.217″ Length × 0.575″ Width × 0.272″ Thickness ; IC28 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC28 |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | Slotting | | Shape | 85° Parallelogram |

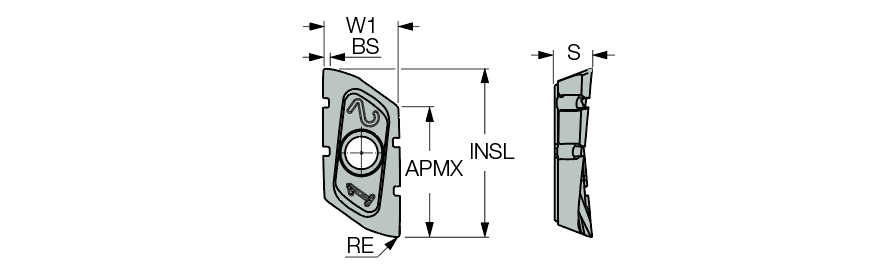

| Cutting Edge Length (L) | 1.217″ | Maximum Feed per Tooth (fz(max)) | 0.0138 ″/tooth |
| Insert Length (INSL) | 1.217″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0197″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.866″ | Minimum Feed per Tooth (fz(min)) | 0.0098 ″/tooth |
| Insert Width (W1) | 0.575″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.272″ | Cutting Edge Effective Length (LE) | 0.866″ |
| Wiper Edge Length (BS) | 0.012″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Chip splitting insert for rough milling of aluminum. | Country of Origin | Israel |

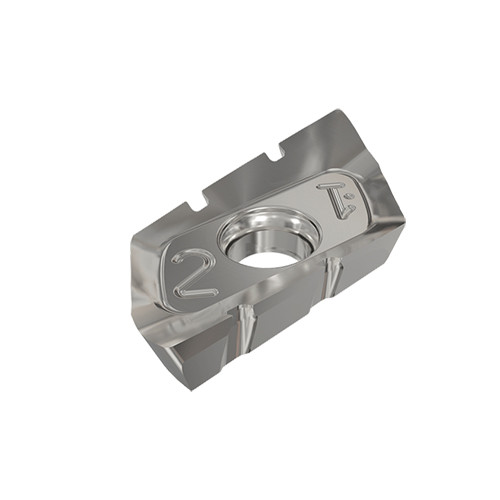

| Remarks | To avoid incorrect mounting of the inserts, insert one pin into each tool pocket in an alternating order. As there is only one cavity at the insert bottom, it will prevent insert incorrect orientation. To be used only on even number flute tools, when the 1 and 2 digits appear in an alternating order. |
Shipping Info
Package Weight
0.041
