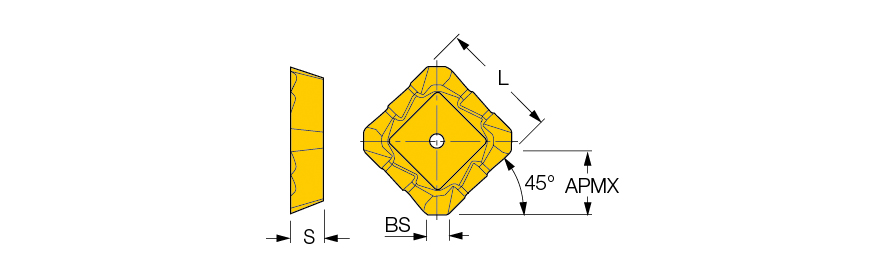

SEKR 43AFTR-HS
Milling Insert; 0.498″ Length × 0.187″ Thickness ; IC250 ; Carbide ; TiCN|TiN
| Applicable Material | Steel|Stainless Steel | Grade | IC250 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | Square |
| Cutting Edge Length (L) | 0.498″ | Maximum Feed per Tooth (fz(max)) | 0.0098 inch/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.247″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.0059 inch/tooth |
| Wiper Edge Length (BS) | 0.071″ | Measurement Type | Metric |
| Coating | TiCN|TiN | Body Material | Carbide |
Product Features
| Family Description | Square milling inserts with chip splitting serrated cutting edge, used for 45° roughing applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.018
