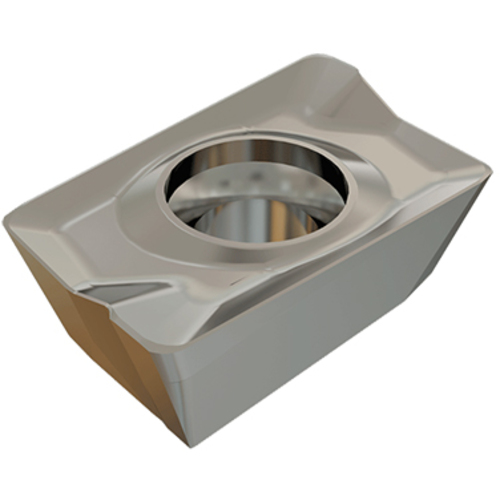

SPK 42EDTR
Milling Insert; 1/2″ Length × 1/8″ Thickness ; IC30N ; Cermet ; Uncoated
| Applicable Material | Steel|Stainless Steel | Grade | IC30N |
| Application | | Facing | Milling Inserts | Profiling | | Shape | Square |
| Cutting Edge Length (L) | 1/2″ | Maximum Feed per Tooth (fz(max)) | 0.0059 inch/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Cermet |
| Depth of Cut Maximum (APMX) | 0.374″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 1/8″ | Minimum Feed per Tooth (fz(min)) | 0.0031 inch/tooth |
| Wiper Edge Length (BS) | 0.055″ | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Flat rake milling inserts for general use. The -42 design provide an improved tool life. | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
