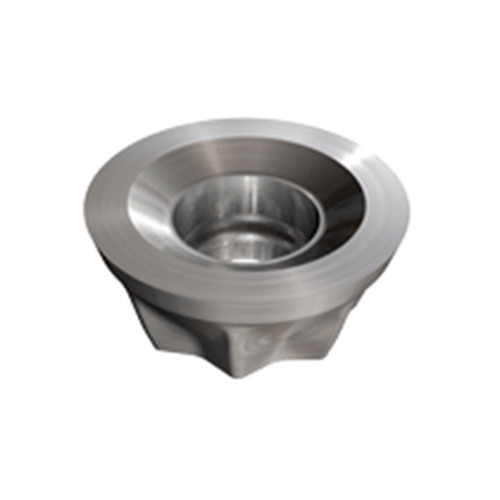

R90CW 1205-T IC908
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Application | | Bottom Shouldering | Chamfering & Bottom Deburring | Profiling | Shouldering | Side Slotting | Slotting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.2362″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Insert Thickness (S) | 0.197″ | Number of Cutting Edges | 8 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | CHAMMILL round inserts with a flat rake, used for profile milling. | Country of Origin | Israel |
Shipping Info
Package Length
.50000
Package Width
.50000
Package Height
.25000
Package Weight
0.013
