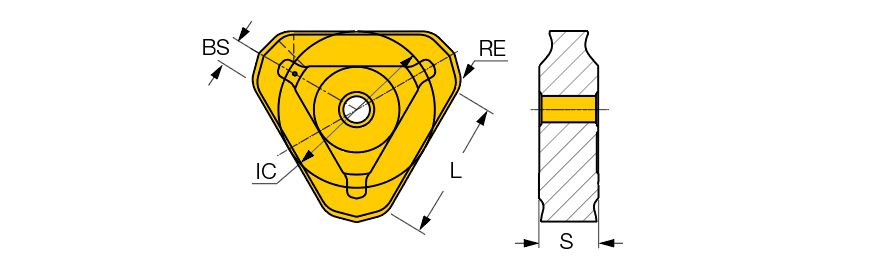

TNHF 1204AN-LM IC910
| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Facing | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Neutral |
| Insert Length (INSL) | 0.422″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.016″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | AlTiN | Number of Cutting Edges | 3 |
| Grade | IC910 | Measurement Type | Inch |
| Shape | Triangle | Body Material | Carbide |
Product Features
| Family Description | Double-sided face milling insert for machining cast iron, used mainly by the automotive industry. LM Chipformer for roughing and semi- roughing. 3W Chipformer for semi-finishing and finishing. | Country of Origin | Israel |
Shipping Info
Package Weight
0.025
