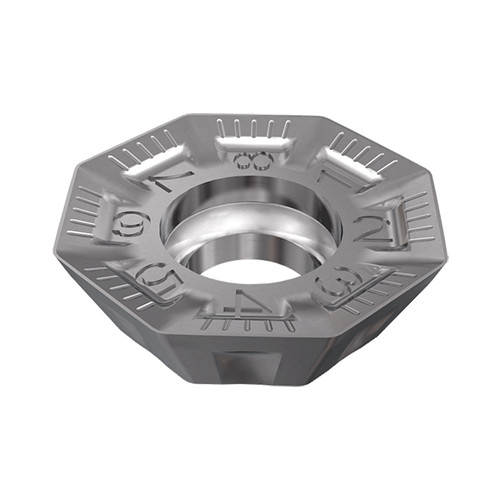

OFMT 05T305TN-76 IC328
Milling Insert; OFMT05T305TN76 IC328 MILL IC328 × 0.157″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC328 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | 135° Octagon |

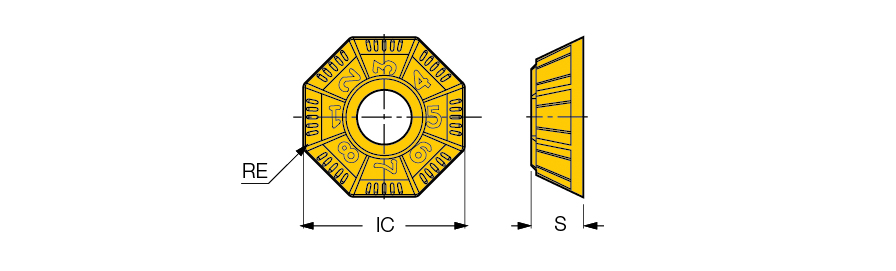

| Corner Radius (RE) | 0.0236″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.157″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | Octagonal milling inserts | Country of Origin | Israel |
| Remarks | Note: Available only in non-European countries |
Shipping Info
Package Weight
0.007
