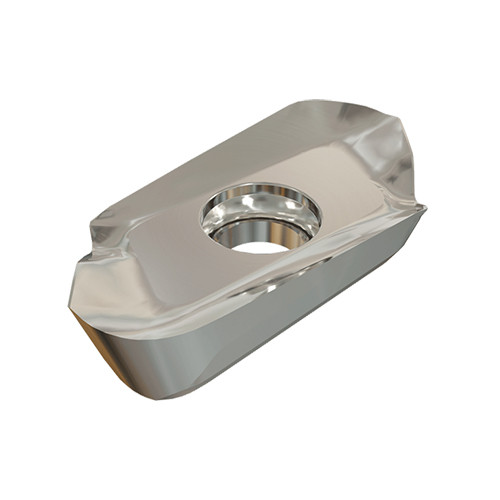

APCR 220632-HM IC28
Milling Insert; 1.138″ Length × 0.547″ Width × 0.236″ Thickness ; IC28 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC28 |
| Application | | Facing | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shape | 85° Parallelogram |

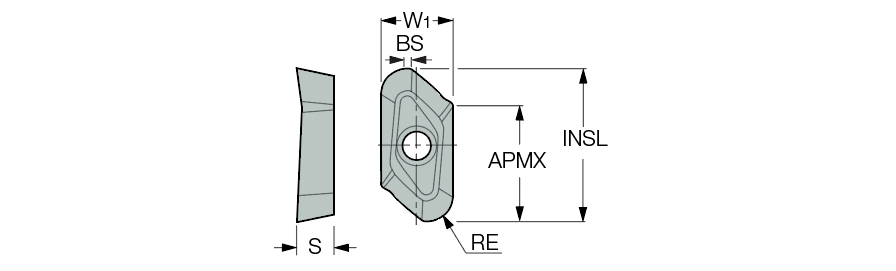

| Cutting Edge Length (L) | 1.138″ | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Insert Length (INSL) | 1.138″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.126″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.827″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Width (W1) | 0.547″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.236″ | Cutting Edge Effective Length (LE) | 0.827″ |
| Wiper Edge Length (BS) | 0.063″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | HELIALU super positive inserts with a polished rake for machining aluminum. | Country of Origin | Israel |
| Remarks | Insert with corner radii larger than .031 should be used only on the faceof the cutter. |
Shipping Info
Package Weight
0.043
