3M AXKT 2006ADTR

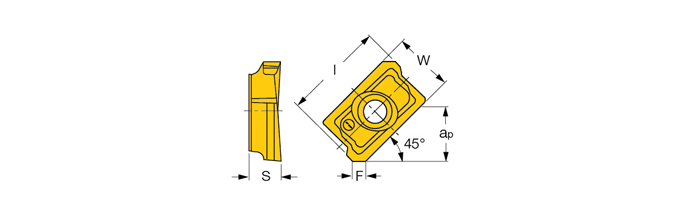

Milling Insert; 0.89″ Length × 0.547″ Width × 0.256″ Thickness ; IC328 ; Carbide ; TiCN
| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys | Grade | IC328 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.89″ | Maximum Feed per Tooth (fz(max)) | 0.0157 inch/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.394″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.547″ | Minimum Feed per Tooth (fz(min)) | 0.0118 inch/tooth |
| Insert Thickness (S) | 0.256″ | Measurement Type | Metric |
| Wiper Edge Length (BS) | 0.094″ | Body Material | Carbide |
| Coating | TiCN |
Product Features
| Family Description | MILL2000 Heavy duty design for 45° heavy face milling applications: dovetail section shape, helical cutting edge and positive rake angle. Enable a secure clamping and high durability in rough applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.045
