TPK 32PPTR-42 IC328
Milling Insert; TPK32PPTR-42 IC328 IC328 × 1/8″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Triangle |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Insert Length (INSL) | 0.65″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.394″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 1/8″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Wiper Edge Length (BS) | 0.058″ | Number of Cutting Edges | 3 |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC328 | Body Material | Carbide |
Product Features

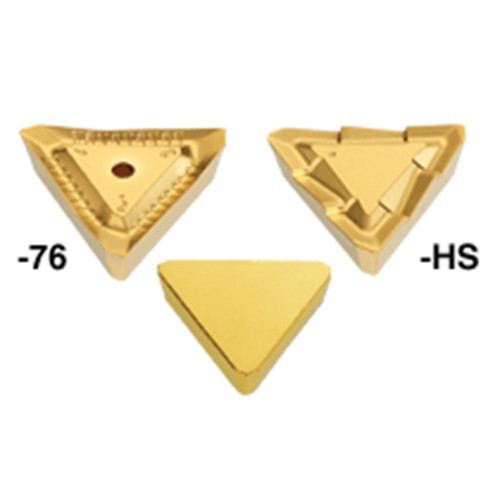

| Family Description | General use milling inserts. The -42 design has an improved tool life. The -HS has a serrated cutting edge for chip splitting and reduced chatter, the -76 has ribs along the cutting edge for reduced heat transfer in heavy machining. | Country of Origin | Israel |
Shipping Info
Package Weight
0.012
