RXCR 05T1 IC328
Milling Insert; RXCR05T1 IC328 IC328 × 0.059″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0039 ″/tooth |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0984″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.197″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Insert Thickness (S) | 0.059″ | Number of Cutting Edges | 8 |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC328 | Body Material | Carbide |
| Shape | Round |
Product Features

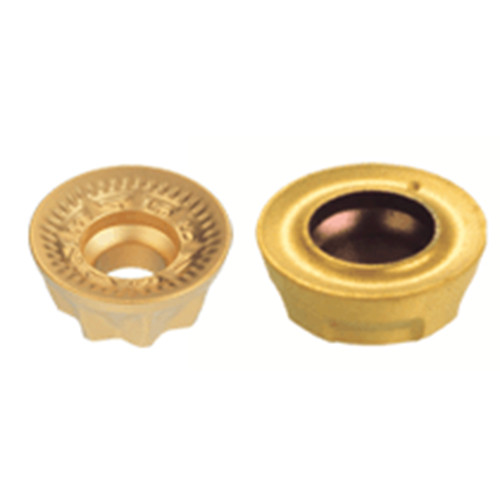

| Family Description | Precision ground positive rake, round milling inserts with a star-shaped bottom for indexing and preventing insert rotation. | Country of Origin | Israel |
Shipping Info
Package Weight
0.003
