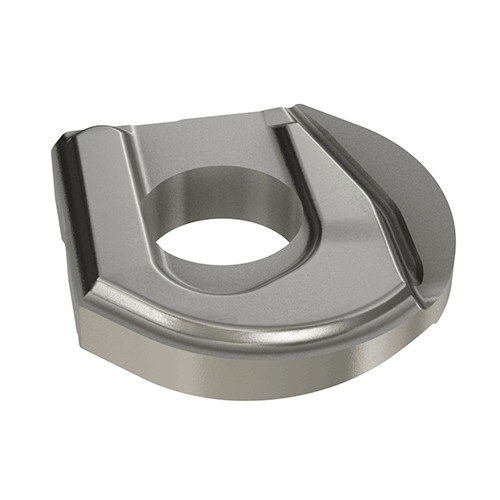

HBF D200-QF IC928
Milling Insert; HBFD200QF IC928 IC928 × 4.65 mm Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Profiling | Rampdown | Undercutting | | Cutting Direction (HAND) | Right Hand |

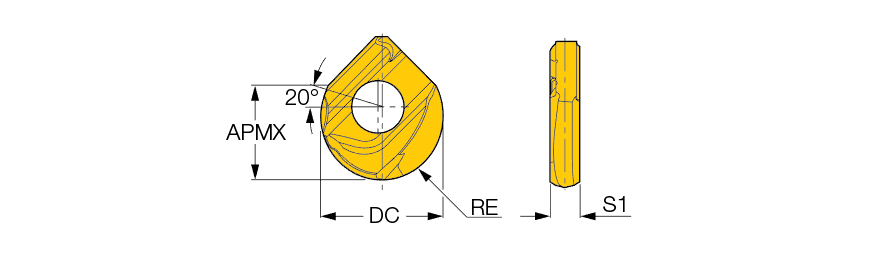

| Corner Radius (RE) | 10 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 13.4 mm | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 4.65 mm | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Coating | TiAlN | Number of Cutting Edges | 2 |
| Grade | IC928 | Measurement Type | Metric |
| Shape | Round | Body Material | Carbide |
Product Features
| Family Description | BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for high-quality finishing profiling, up and down ramping, steep profiles and undercutting. Accuracy is within 0.005mm. | Country of Origin | Israel |
Shipping Info
Package Weight
0.039
