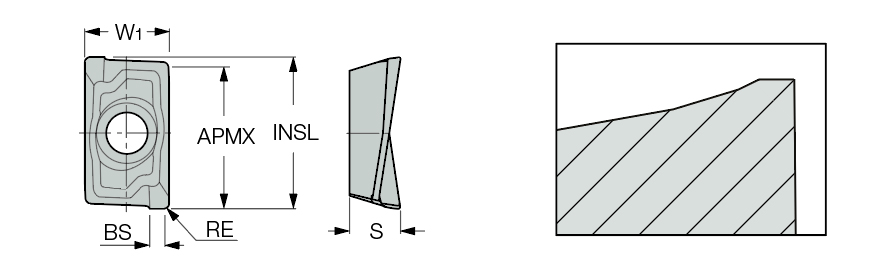

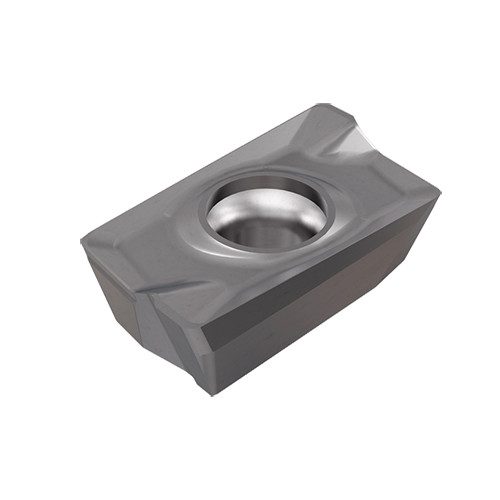

APCR 1604PDFR-P IC28
Milling Insert; 17.92 mm Length × 9.45 mm Width × 5.7 mm Thickness ; IC28 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 85° Parallelogram |
| Application | | Countersinking | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Cutting Edge Length (L) | 17.92 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 17.92 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 14 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Width (W1) | 9.45 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5.7 mm | Cutting Edge Effective Length (LE) | 14.5 mm |
| Wiper Edge Length (BS) | 1.8 mm | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC28 |
Product Features
| Family Description | Super positive and polished rake inserts used for machining aluminum and high temperature alloys. | Country of Origin | Israel |
Shipping Info
Package Weight
0.017
