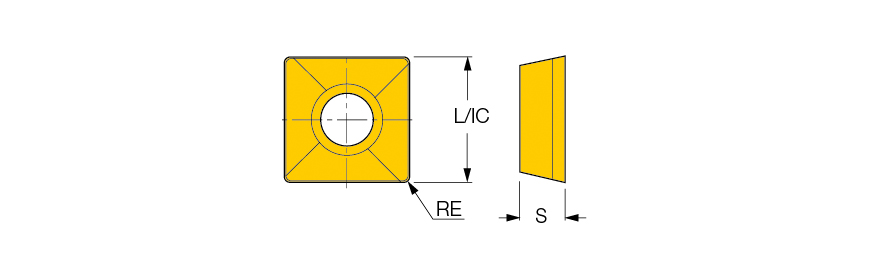

QOMT 060208TN-HQ IC950
Milling Insert; QOMT 060208TN-HQ IC950 IC950 × 0.101″ Thickness ; Carbide
| Applicable Material | | Steel | Cast Iron | | Shape | Square |
| Application | | Bottom Shouldering | Chamfering & Bottom Deburring | Countersinking | Drill Mill | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Insert Length (INSL) | 6.16 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 4 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 2.56 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Grade | IC950 | Body Material | Carbide |
Product Features
| Family Description | QUAD2000 insert with 4 right- or left-hand cutting edges for general use. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
