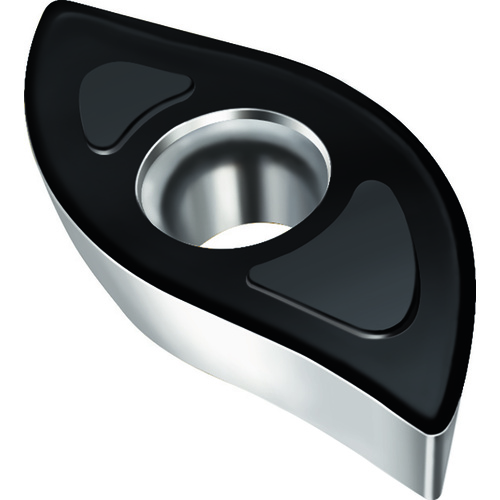

XDGT16T3100R-D57 Grade WKP35S
Milling Insert; 15.93 mm Length × 9 mm Width × 3.74 mm Thickness ; WKP35S ; Carbide ; | TiCN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Insert Style | XDGT |
| Cutting Edge Length (L) | 15.93 mm | Insert Size | 16T3100 |
| Corner Radius (RE) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.354″ | Chip Breaker Type | T |
| Insert Width (W1) | 9 mm | Series/List # | XDGT-WKP35S |
| Inscribed Circle Diameter (IC) | 0.354″ | Hole Diameter | 3.4 mm |
| Insert Thickness (S) | 3.74 mm | Cutting Edge Material | Carbide |
| Coating | | TiCN | Al2O3 | | Tool Type | Single sided Inserts |
| Grade | WKP35S | Number of Cutting Edges | 2 |
| Shape | 85° Parallelogram |
Product Features
| Family Description | XDGT16T3100R-D57 WKP35S | Country of Origin | Germany |
