ONMU 090520ANTN-M13 GRADE MK2050 INSERT
Milling Insert; 22 mm Length × 5.8 mm Thickness ; MK2050 ; Carbide ; | TiAlN | TiSiN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | MK2050 |

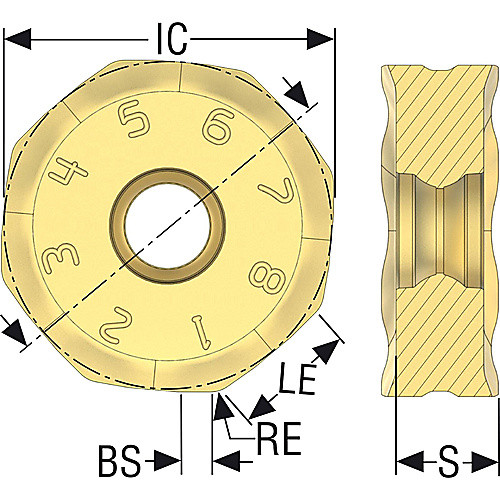

| Cutting Edge Length (L) | 22 mm | Shape | Octagon |
| Corner Radius (RE) | 0.0787″ | Insert Style | ONMU |
| Depth of Cut Maximum (APMX) | 0.3031″ | Insert Size | 90520 |
| Insert Width (W1) | 0.8661″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 22 mm | Chip Breaker Type | U |
| Insert Thickness (S) | 5.8 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Double sided Inserts |
| Coating | | TiAlN | TiSiN | | Number of Cutting Edges | 16 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.071
