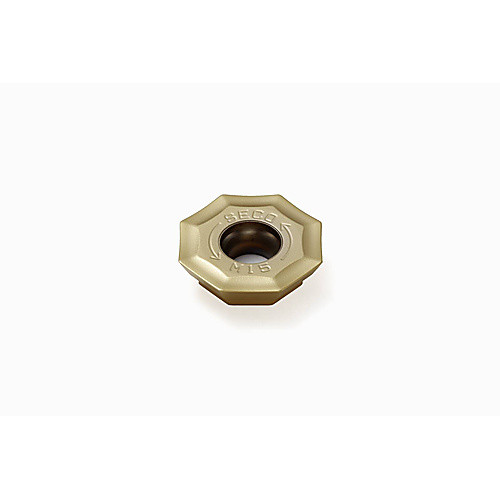

OFMT050405TR-M14 F40M
Milling Insert; 13.3 mm Length × 0.5189″ Width × 4.76 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 13.3 mm | Shape | Octagon |
| Corner Radius (RE) | 0.0197″ | Insert Style | OFMT |
| Depth of Cut Maximum (APMX) | 0.1063″ | Insert Size | 50405 |
| Insert Width (W1) | 0.5189″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 13.3 mm | Chip Breaker Type | T |
| Insert Thickness (S) | 4.76 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 25 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 8 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.011
