FFX4 XNMU 080620T IC810
Milling Insert; FFX4 XNMU 080620T IC810 IC810 × 0.614″ Width ; Carbide ; AlTiCrN+TiN
| Applicable Material | | Steel | Cast Iron | | Shape | Round |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Maximum Feed per Tooth (fz(max)) | 0.0472 ″/tooth |

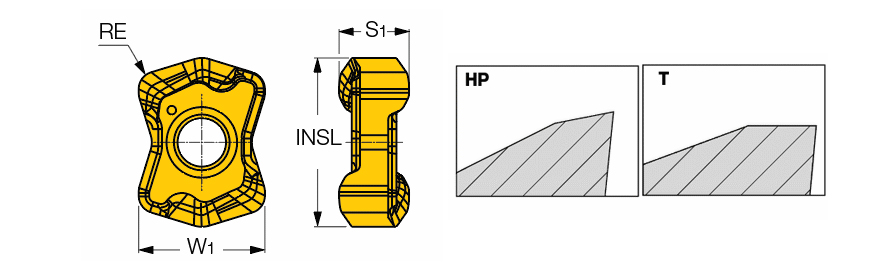

| Insert Length (INSL) | 0.705″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0787″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.0787″ | Minimum Feed per Tooth (fz(min)) | 0.0157 ″/tooth |
| Insert Width (W1) | 0.614″ | Number of Cutting Edges | 4 |
| Coating | AlTiCrN+TiN | Measurement Type | Inch |
| Grade | IC810 | Body Material | Carbide |
Product Features

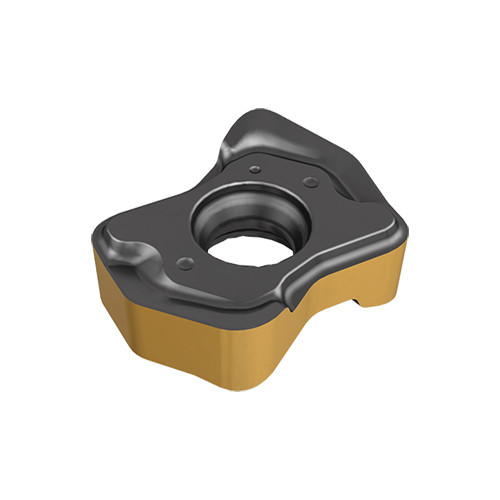

| Family Description | Double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets, profiling and face milling. | Country of Origin | Israel |
| Remarks | For side plunging, the initial cutting feed is .004 inch/t T-for steel, ferritic and martensitic stainless steel, cast iron and hardened steel HP-for austenitic stainless steel and high temperature alloys |
Shipping Info
Package Weight
0.042
