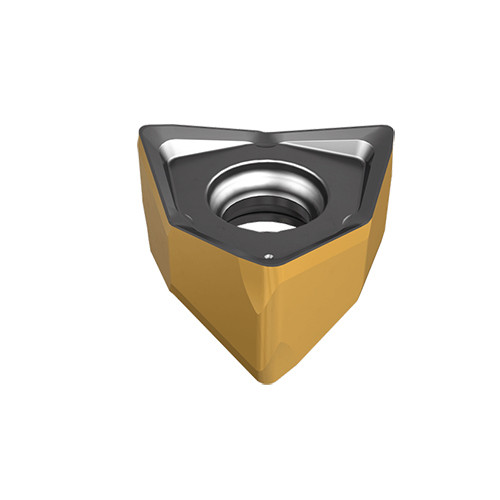

H690 WNMU 0403-PNTR IC5100
Milling Insert; H690 WNMU 0403-PNTR 5100 IC5100 × 0.138″ Thickness ; Carbide ; TiCN+Al2O3
| Applicable Material | | Cast Iron | | Grade | IC5100 |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Shape | Round |

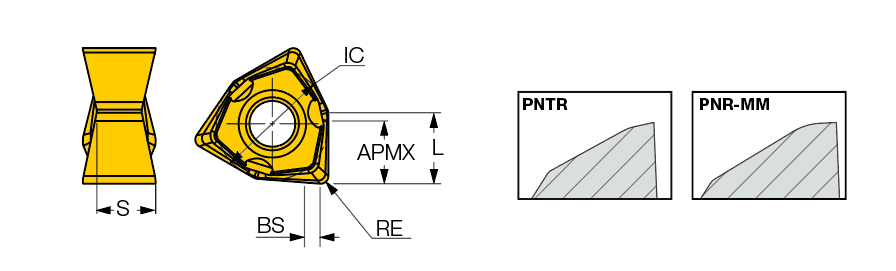

| Insert Length (INSL) | 0.165″ | Maximum Feed per Tooth (fz(max)) | 0.0063 ″/tooth |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.157″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Inscribed Circle Diameter (IC) | 0.264″ | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 0.138″ | Cutting Edge Effective Length (LE) | 0.165″ |
| Wiper Edge Length (BS) | 0.031″ | Measurement Type | Inch |
| Coating | TiCN+Al2O3 | Body Material | Carbide |
Product Features
| Family Description | Trigonal inserts with 6 helical cutting edges for 90° shoulder milling | Country of Origin | Israel |
Shipping Info
Package Weight
0.006
