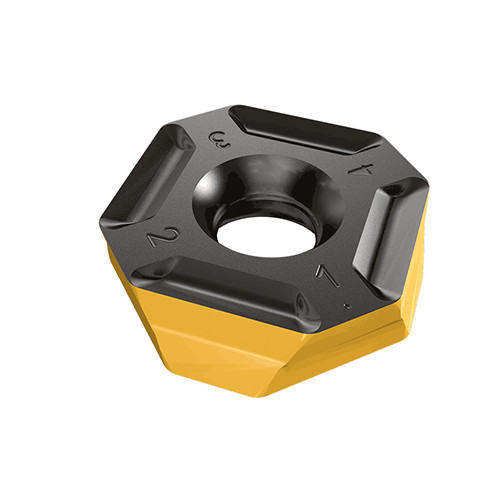

IQ845 SYHU 070400AD IC882
Milling Insert; IQ845 SYHU 070400AD IC882 IC882 × 0.165″ Thickness ; Carbide ; AlTiN+TiAlSiN+TiSiN

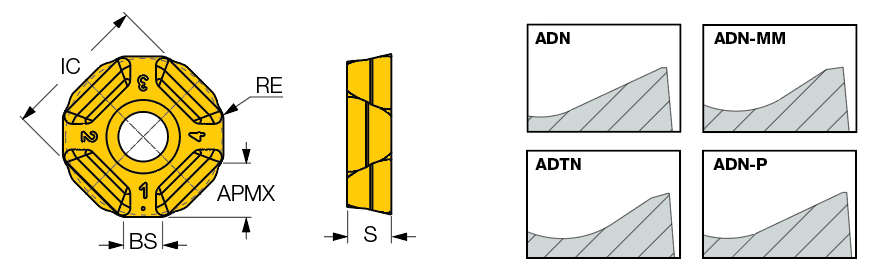

| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.181″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.543″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.165″ | Tool Type | Double sided Inserts |
| Wiper Edge Length (BS) | 0.134″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 8 |
| Coating | AlTiN+TiAlSiN+TiSiN | Measurement Type | Inch |
| Grade | IC882 | Body Material | Carbide |
Product Features
| Family Description | Square inserts with 8 cutting edges. | Country of Origin | Israel |

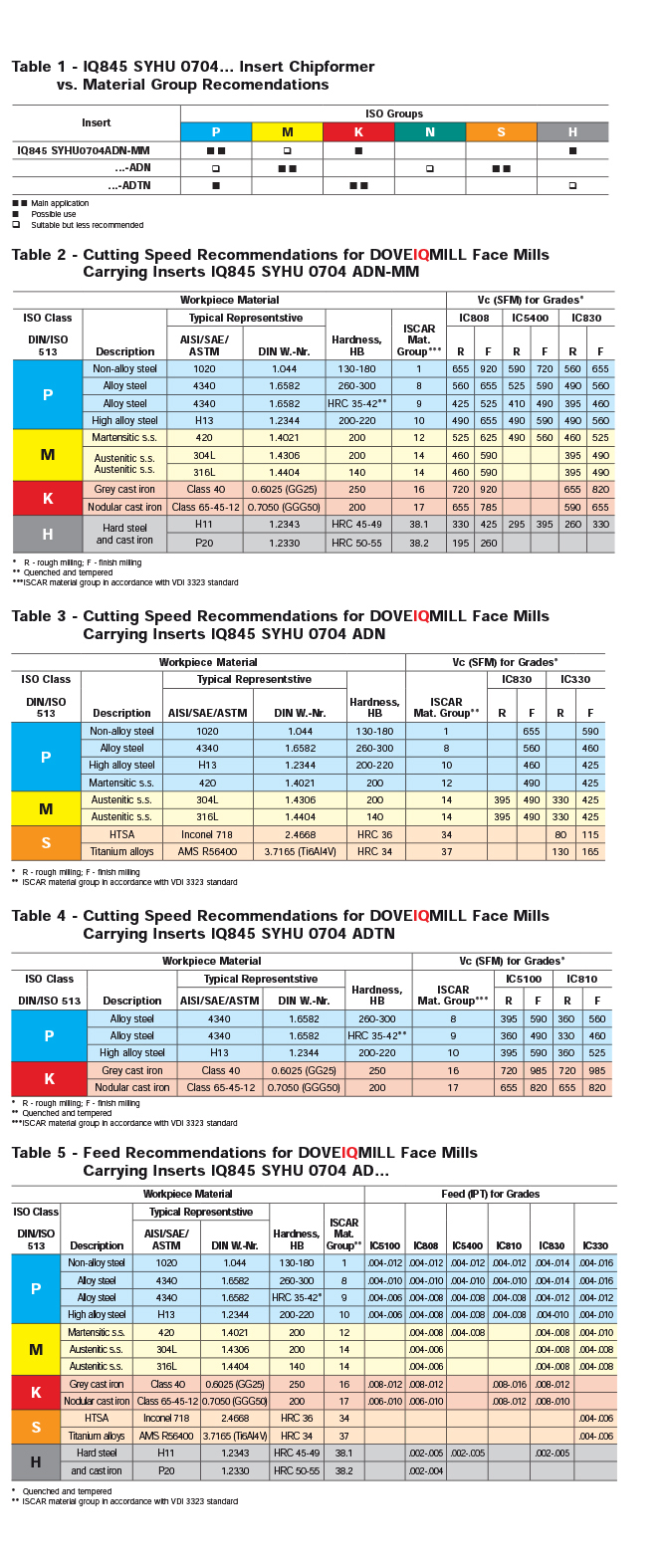

| Remarks | For chipformer selection and cutting recommendations, see More info |
Shipping Info
Package Weight
0.021
