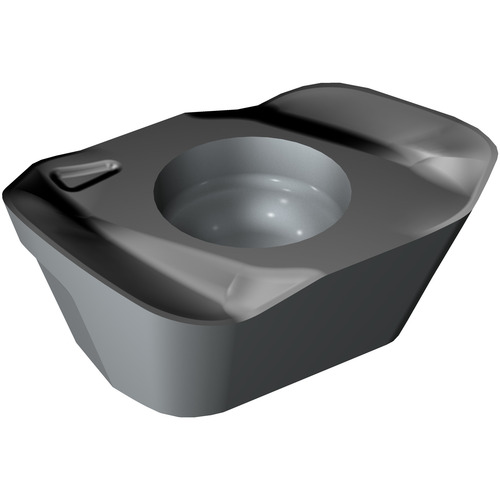

MH20080425EL30 1040 INS
Milling Insert; MH20080425EL30 1040 INS 1040 × 8.5 mm Width × 4.03 mm Thickness ; TiAlN
| Applicable Material | | Stainless Steel | | Insert Style | MH20 |
| Corner Radius (RE) | 2.1 mm | Insert Size | 0804 |
| Depth of Cut Maximum (APMX) | 1.3 mm | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 8.5 mm | Chip Breaker Type | L30 |
| Insert Thickness (S) | 4.03 mm | Coating Process | PVD |
| Coating | TiAlN | Cutting Edge Effective Length (LE) | 5.9 mm |
| Grade | 1040 | Measurement Type | Metric |
| Shape | Rectangle |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.009
