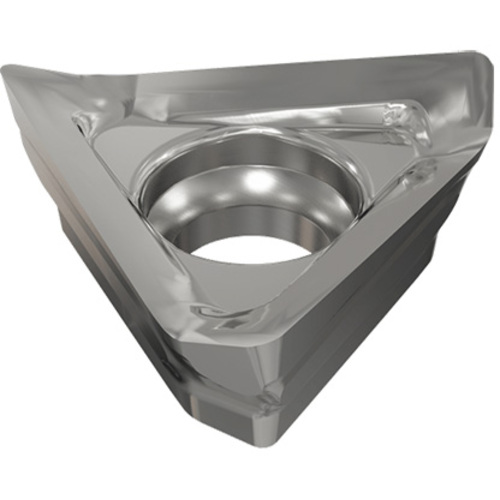

HM390 TDCR 150502PDFR-P IC28
Milling Insert; HM390 TDCR 150502PDFR-P28 IC28 × 0.236″ Thickness ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC28 |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Shape | Round |

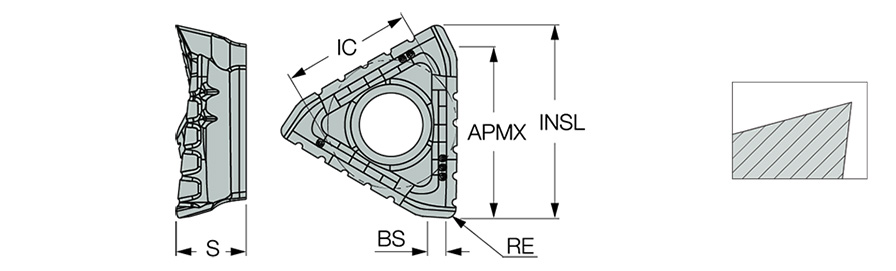

| Insert Length (INSL) | 0.661″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0079″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.5118″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.449″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Insert Thickness (S) | 0.236″ | Number of Cutting Edges | 3 |
| Wiper Edge Length (BS) | 0.094″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | Triangular inserts with 3 helical cutting edges feature positive and polished rake for machining non-ferrous materials | Country of Origin | Israel |
| Remarks | When installing HM390 size 15 inserts with a corner radius greater than .126, modify the tool body by rounding the corner of the insert pocket, as detailed in More Info Peripherally ground inserts, feature super positive and polished rake face for milling non-ferrous materials For FW insert clamping order instructions, watch the attached video film |
Shipping Info
Package Weight
0.015
