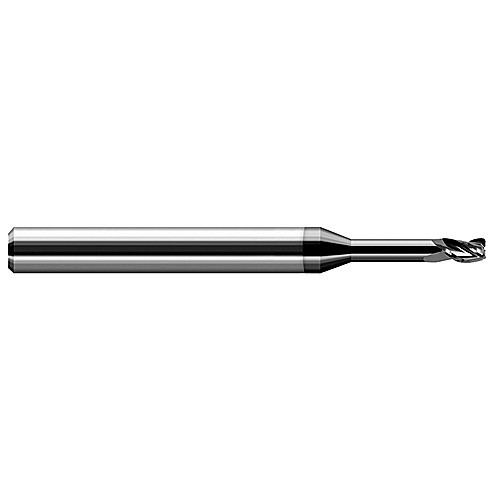

Miniature End Mills - Long Reach, Stub Flute - 0.0620″ (1/16″) Cutter Diameter × 0.0100″ Radius × 0.0930″ (3/32″) Length of Cut × 0.3120″ (5/16″) Reach Carbide Corner Radius End Mill, 3 Flutes, Amorphous Diamond Coated
Corner Radius End Mill; 1/16″ Dia. × 3/32″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; DLC
| Cutting Diameter (DC) | 1/16″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 5/16″ |
| Depth of Cut Maximum (APMX) | 3/32″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 2-1/2″ | Length Group | 5D |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | DLC | Decimal Equivalent | 0.0625″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.016
