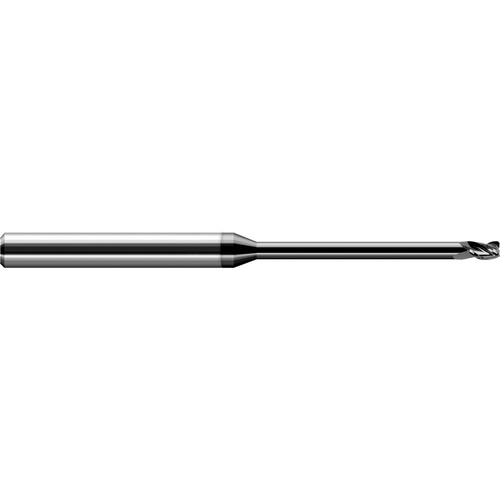

Miniature End Mills - Long Reach, Stub Flute - 0.1875″ (3/16″) Cutter Diameter × 0.0150″ (1/64″) Radius × 0.2810″ (9/32″) Length of Cut × 2.2500″ (2-1/4″) Reach Carbide Corner Radius End Mill, 3 Flutes, Amorphous Diamond Coated
Corner Radius End Mill; 3/16″ Dia. × 9/32″ LOC × 3/16″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; DLC
| Cutting Diameter (DC) | 3/16″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Usable Length (LU) | 2-1/4″ |
| Depth of Cut Maximum (APMX) | 9/32″ | Corner Radius (RE) | 1/64″ |
| Overall Length (OAL) | 4″ | Length Group | 12D |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | DLC | Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.057
