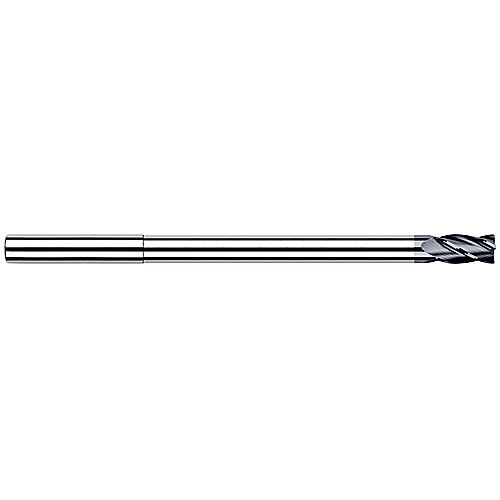

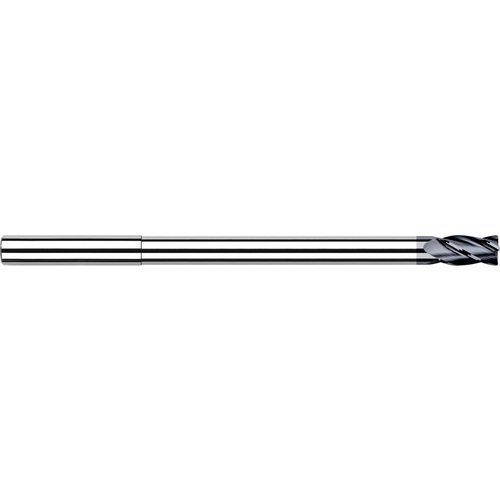

Miniature End Mills - Long Reach, Stub Flute - 0.7500″ (3/4″) Cutter Diameter × 0.0300″ Radius × 1.1250″ (1-1/8″) Length of Cut × 5.6250″ Reach Carbide Corner Radius End Mill, 4 Flutes, AlTiN Coated
SQ End Mill; 3/4″ Dia. × 1-1/8″ LOC × 3/4″ Shank Dia. × 8″ OAL ; 0.03″ RE ; 4 FL ; 5-5/8″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 5-5/8″ |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 8″ | Length Group | Long Reach |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | AlTiN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.851
