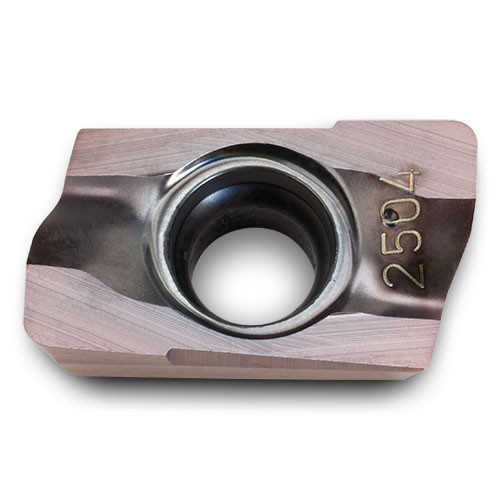

BODT130408R-001 IN2005
Milling Insert; 0.17″ Length × 0.319″ Width × 0.19″ Thickness ; IN2005 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | IN2005 |
| Cutting Edge Length (L) | 0.17″ | Shape | Round |
| Insert Length (INSL) | 0.558″ | Insert Style | BODT130408R-001 |
| Corner Radius (RE) | 0.031″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.319″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.19″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.076″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Steel |
Product Features
| Family Description | Integrated wiper flat on face for producing surface finishes as good as 20 Ra Ideal for finishing hardened steel > RC 50 in long reach applications 2 Indexes | Country of Origin | Germany |
Shipping Info
Package Weight
0.009
