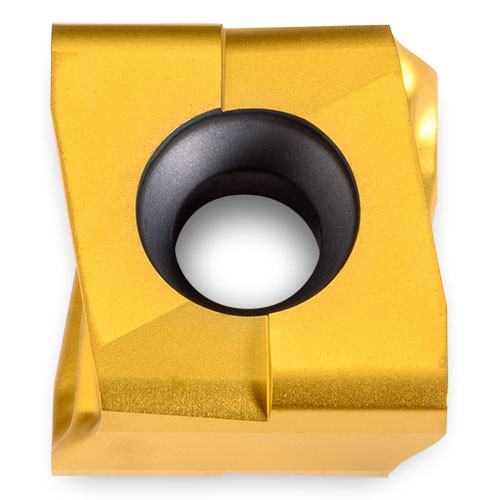

DPM324L3A1-MM IN2530
Milling Insert; DPM324L3A1-MM K IN2530 IN2530 × 0.472″ Width × 0.281″ Thickness ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Shape | Round |
| Insert Length (INSL) | 0.512″ | Insert Style | DPM324L3A1-MM |
| Corner Radius (RE) | 0.078″ | Cutting Direction (HAND) | Left Hand |
| Insert Width (W1) | 0.472″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.281″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.03″ | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Steel |
| Grade | IN2530 |
Product Features
| Country of Origin | USA |
