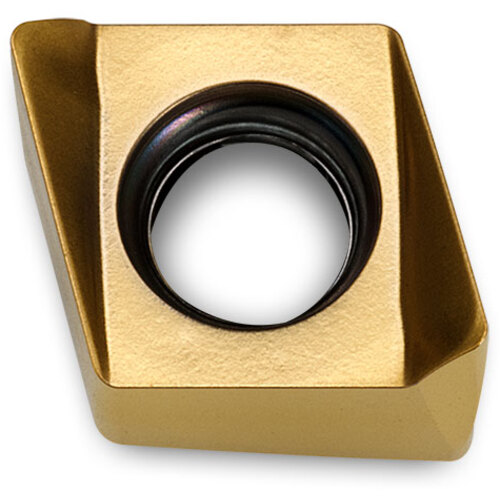

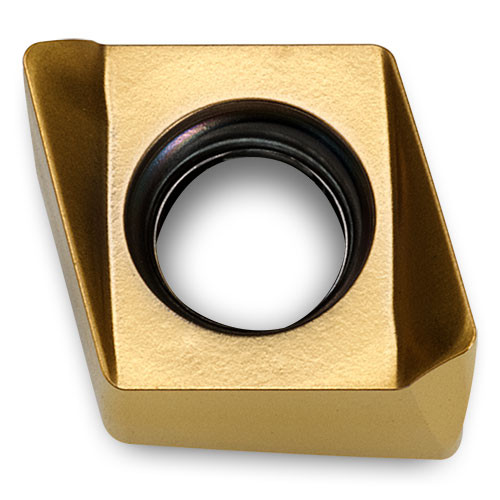

MNHU060308R-HW IN2505
Milling Insert; 0.24″ Length × 0.26″ Width × 0.184″ Thickness ; IN2505 ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | IN2505 |
| Cutting Edge Length (L) | 0.24″ | Shape | Round |
| Insert Length (INSL) | 0.26″ | Insert Style | MNHU060308R-HW |
| Corner Radius (RE) | 0.031″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.26″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.184″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.023″ | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Steel |
Product Features
| Family Description | Integrated wiper flat on face for producing 32-63 Ra surface finishes To be loaded in all pockets of the cutter 4 Indexes | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.005
