FFX4 XNMU 040310RM-HP IC882
Milling Insert; FFX4 XNMU 040310RM-HP 882 IC882 × 0.282″ Width ; Carbide ; AlTiN+TiAlSiN+TiSiN
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Maximum Feed per Tooth (fz(max)) | 0.8 mm/tooth |

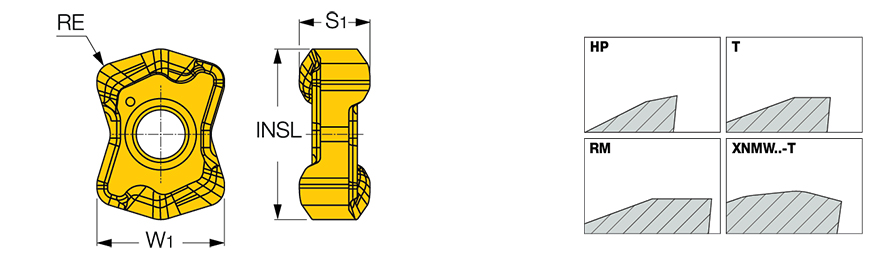

| Insert Length (INSL) | 9.58 mm | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Insert Width (W1) | 7.16 mm | Number of Cutting Edges | 4 |
| Coating | AlTiN+TiAlSiN+TiSiN | Measurement Type | Metric |
| Grade | IC882 | Body Material | Carbide |
Product Features
| Family Description | Double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets, profiling and face milling. | Country of Origin | Israel |

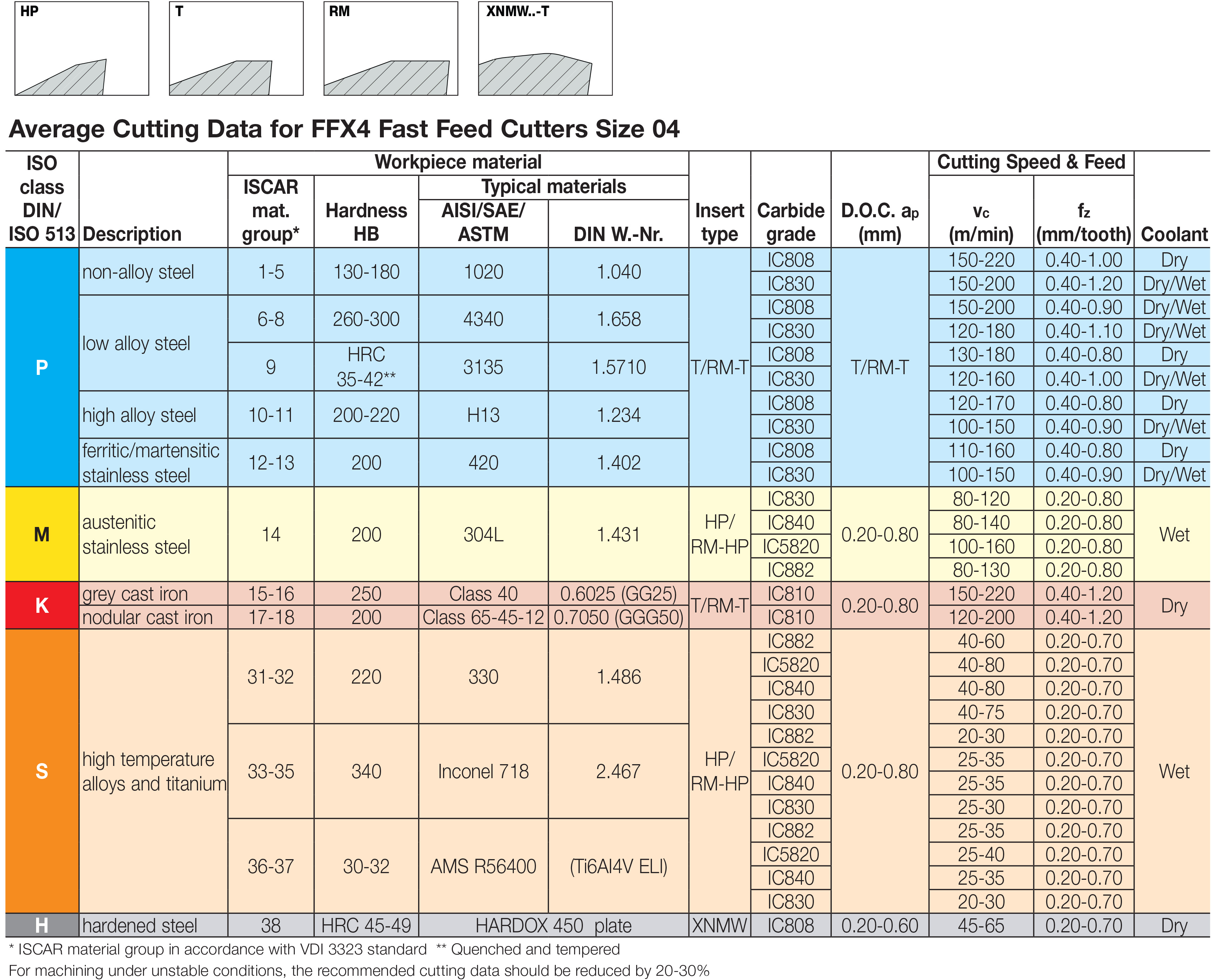

| Remarks | For side plunging, the initial cutting feed is 0.1 mm/t HP- for austenitic stainless steel, titanium and high temperature alloys RM-reinforced type insert T- for steel, ferritic and martensitic stainless steel and cast iron XNMW-T- for hard material (up to 49 HRC) and uneven surfaces |
Shipping Info
Package Weight
0.006
