SOMT 040208 PNR-FF IC808

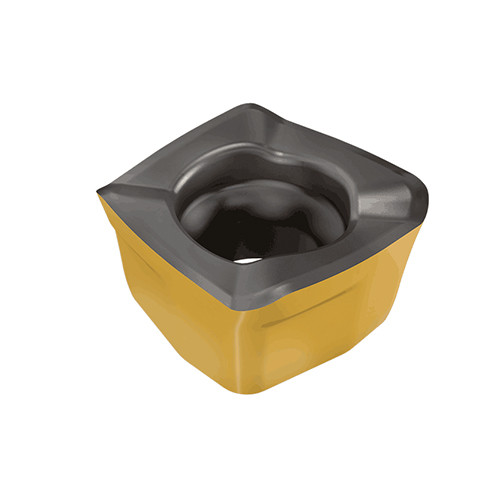

Milling Insert; SOMT 040208 PNR-FF IC808 IC808 × 0.087″ Thickness ; Carbide ; TiAlN+AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Fast Feed Milling | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.0197 ″/tooth |

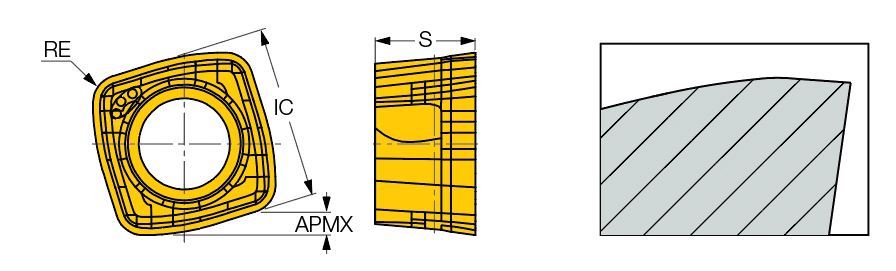

| Corner Radius (RE) | 0.0315″ | Cutting Direction (HAND) | Neutral |
| Depth of Cut Maximum (APMX) | 0.0197″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.161″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.087″ | Number of Cutting Edges | 4 |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
Product Features
| Family Description | Square milling inserts for fast feed milling. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
