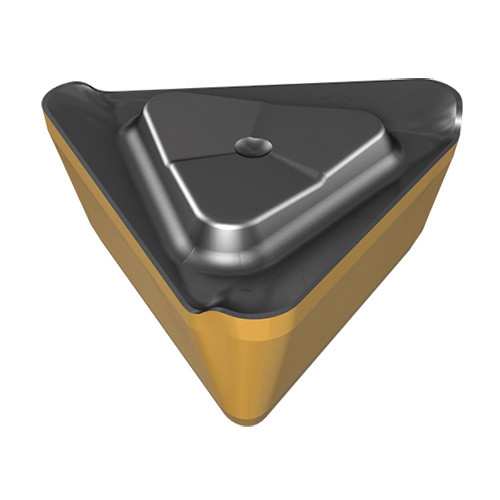

HM390 TPKR 0401-PCTR IC808
Milling Insert; HM390 TPKR 0401-PCTR 808 IC808 × 0.063″ Thickness ; Carbide ; TiAlN+AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC808 |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Shape | Round |
| Insert Length (INSL) | 0.157″ | Maximum Feed per Tooth (fz(max)) | 0.0039 ″/tooth |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.11″ | Minimum Feed per Tooth (fz(min)) | 0.0016 ″/tooth |
| Insert Thickness (S) | 0.063″ | Number of Cutting Edges | 3 |
| Wiper Edge Length (BS) | 0.016″ | Cutting Edge Effective Length (LE) | 0.118″ |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
Product Features
| Family Description | Triangular miniature inserts with 3 helical cutting edges for 90° shoulders. For general use applications that require small diameter ednmills. | Country of Origin | Israel |
Shipping Info
Package Weight
0.001
