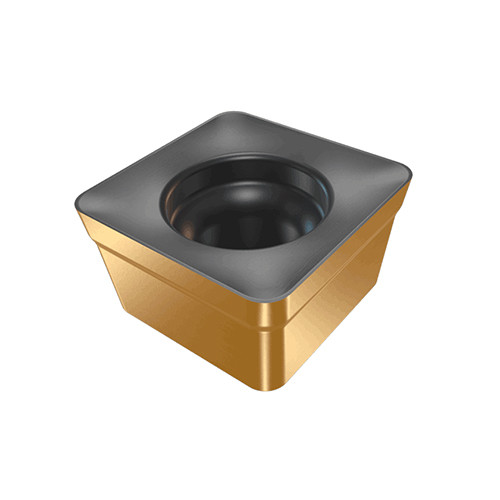

SOMT 040204 PNTR IC830
Milling Insert; SOMT 040204 PNTR IC830 IC830 × 0.087″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0039 ″/tooth |

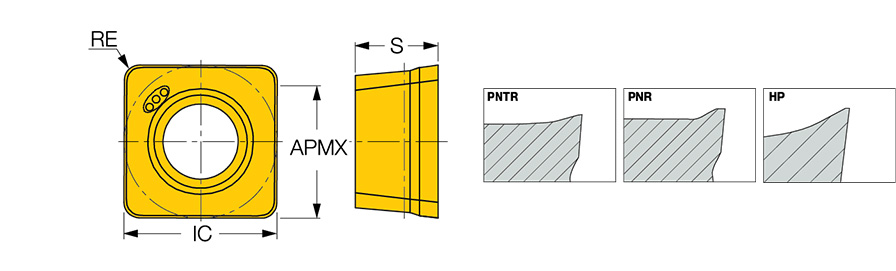

| Corner Radius (RE) | 0.0157″ | Cutting Direction (HAND) | Neutral |
| Depth of Cut Maximum (APMX) | 0.1378″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.16″ | Minimum Feed per Tooth (fz(min)) | 0.0016 ″/tooth |
| Insert Thickness (S) | 0.087″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features
| Family Description | Square milling inserts for general use. | Country of Origin | Israel |
| Remarks | For left or right hand machining |
Shipping Info
Package Weight
0.003
