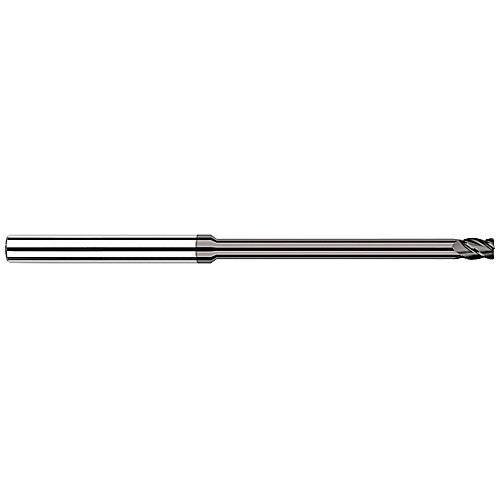

.078D X .010R CVD STB FL
Corner Radius End Mill; 5/64″ Dia. × 0.117″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; CVDDIA
| Cutting Diameter (DC) | 5/64″ | Usable Length (LU) | 0.94″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 0.117″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 2-1/2″ | Length Group | 12D |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | CVDDIA | Decimal Equivalent | 0.078125″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| End Shape | Corner Radius |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.016
