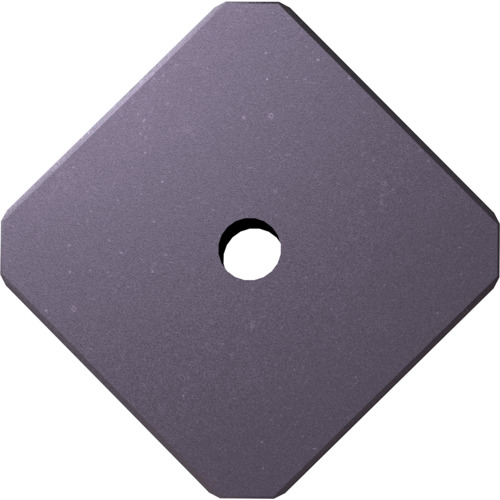

SDCN1203AESN-M-YG712/SDCN42AESN-M
| Applicable Material | | Steel | | Insert Style | SDCN |
| Depth of Cut Maximum (APMX) | 6″ | Clearance Angle Major (AN) | 15 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Series/List # | SDCN |
| Wiper Edge Length (BS) | 0.0803″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 45 Degrees | Tool Type | Milling Insert |
| Coating | AlTiCrN | Coating Process | PVD |
| Grade | YG712 | Number of Cutting Edges | 4 |
| Shape | Square | Measurement Type | Inch |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
1.654
Package Width
3.937
Package Height
0.394
Package Weight
0.05
