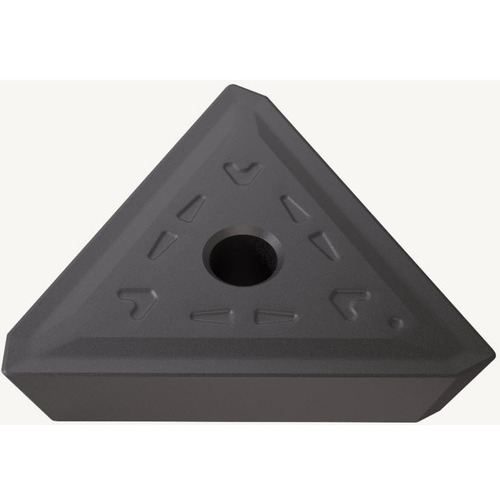

TPKN2204PDTR-GW-YG602/TPKN43PDTR-GW
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Style | TPKN |
| Corner Radius (RE) | 0.0236″ | Clearance Angle Major (AN) | 11 Degrees |
| Depth of Cut Maximum (APMX) | 17″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | GW |
| Insert Thickness (S) | 3/16″ | Series/List # | TPKN |
| Wiper Edge Length (BS) | 0.067″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Milling Insert |
| Coating | TiAlN | Coating Process | PVD |
| Grade | YG602 | Number of Cutting Edges | 3 |
| Shape | Triangle | Measurement Type | Inch |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.625
Package Width
2.375
Package Height
0.750
Package Weight
0.05
