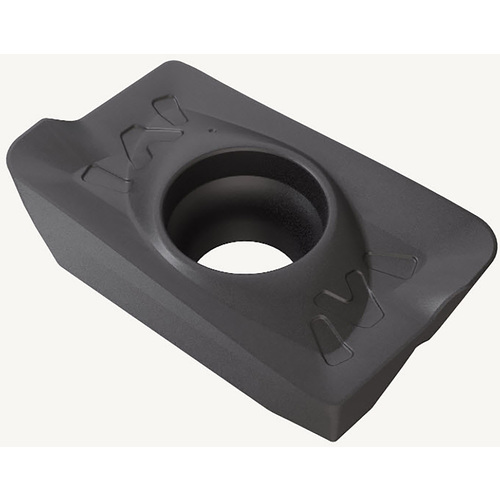

APKT160416-TR-YG602/APKT160416-TR
Milling Insert; APKT160416-TR-YG602
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Style | APKT |
| Cutting Edge Length (L) | 0.5984″ | Clearance Angle Major (AN) | Special |
| Corner Radius (RE) | 1/16″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 14″ | Chip Breaker Type | TR |
| Inscribed Circle Diameter (IC) | 0.37″ | Series/List # | APKT |
| Insert Thickness (S) | 0.209″ | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 0.094″ | Tool Type | Milling Insert |
| Insert Included Angle (EPSR) | 90 Degrees | Coating Process | PVD |
| Coating | TiAlN | Number of Cutting Edges | 2 |
| Grade | YG602 | Cutting Edge Effective Length (LE) | 0.5984″ |
| Shape | Parallelogram 80° | Measurement Type | Inch |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.000
Package Width
1.750
Package Height
0.625
Package Weight
0.019
