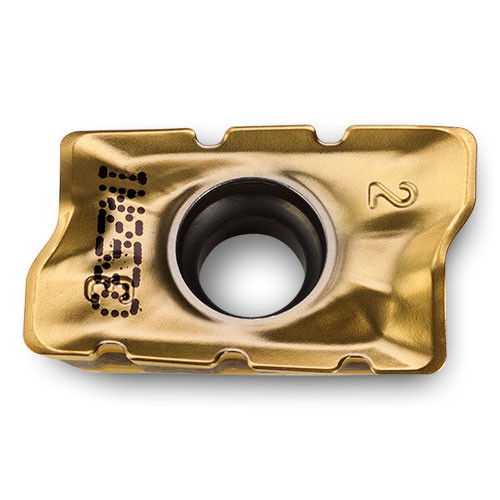

ZOMT170508R IN2510
Milling Insert; 0.645″ Length × 0.421″ Width × 0.218″ Thickness ; IN2510 ; Carbide ; TiAlN+TiN
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | IN2510 |
| Cutting Edge Length (L) | 0.645″ | Shape | Round |
| Insert Length (INSL) | 0.728″ | Insert Style | ZOMT170508R |
| Corner Radius (RE) | 0.031″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.421″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.218″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.088″ | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Steel |
Product Features
| Family Description | Integrated wiper flat on face for producing surface finishes as good as 32 Ra Designed for rough cuts with multiple materials and applications 2 Indexes | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.021
