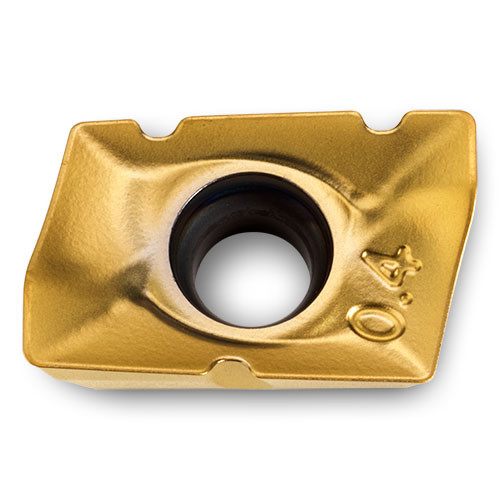

ZOMT09T304R IN4030
Milling Insert; 0.35″ Length × 0.259″ Width × 0.148″ Thickness ; IN4030 ; Carbide ; TiAlN+AlCrO
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Grade | IN4030 |
| Cutting Edge Length (L) | 0.35″ | Shape | Round |
| Insert Length (INSL) | 0.421″ | Insert Style | ZOMT09T304R |
| Corner Radius (RE) | 0.015″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.259″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.148″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.05″ | Measurement Type | Inch |
| Coating | TiAlN+AlCrO | Body Material | Steel |
Product Features
| Family Description | Integrated wiper flat on face for producing surface finishes as good as 32 Ra Designed for rough cuts with multiple materials and applications 2 Indexes | Country of Origin | Germany |
Shipping Info
Package Weight
0.003
