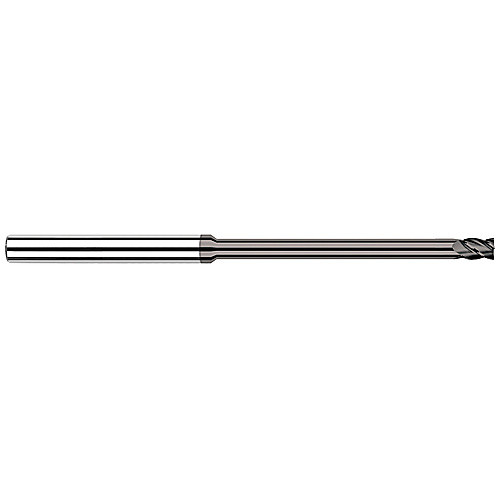

Diamond End Mills for Non-Ferrous Materials - CVD Diamond - 0.0620″ (1/16″) Cutter Diameter × 0.0930″ (3/32″) Length of Cut × 0.7500″ (3/4″) Reach Carbide Square End Mill, 4 Flutes, CVD Diamond Coated
SQ End Mill; 1/16″ Dia. × 3/32″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; CVDDIA
| Cutting Diameter (DC) | 1/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 3/4″ |
| Depth of Cut Maximum (APMX) | 3/32″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 2-1/2″ | Length Group | 12D |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | CVDDIA | Decimal Equivalent | 0.0625″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.016
