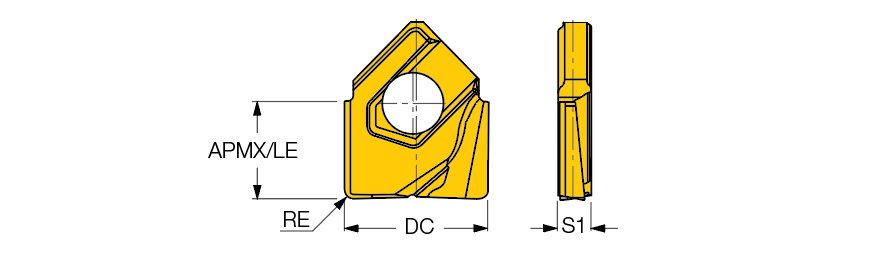

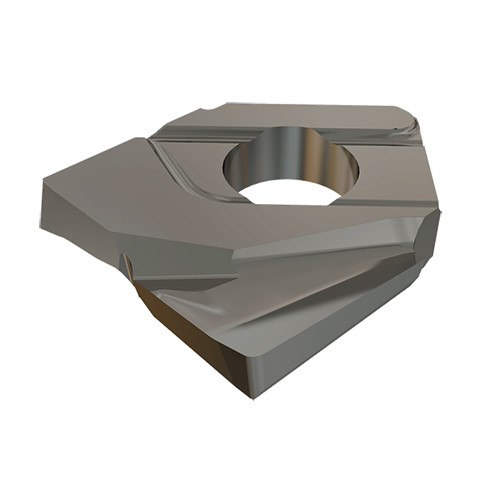

HCC D120-R1.0-QF IC908
Milling Insert; HCC D120-R1.0-QF IC908 IC908 × 12 mm Width × 2.6 mm Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Counter Boring | Drill Mill | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 8.1 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 12 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 2.6 mm | Number of Cutting Edges | 2 |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Effective Length (LE) | 8.1 mm |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Shape | 120° Hexagon |
Product Features
| Family Description | 2 cutting edges (fully effective) inserts for shouldering, slotting, drilling and countersinking applications. Accuracy is within 0.01mm. Used for roughing and semi-finishing applications. Part of the BALLPLUS multifunction milling system. | Country of Origin | Israel |
Shipping Info
Package Weight
0.01
