LYEU14150IS-X IN2005

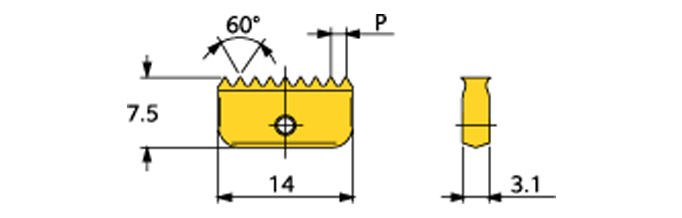

Milling Insert; LYEU14150IS-X I IN2005 IN2005 0.551″ Length × 0.295″ Width × 0.122″ Thickness ; Carbide ; TiAlN
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Non-Ferrous Metals|Hi-Temp Alloys | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | LYEU14150IS-X |
| Cutting Edge Length (L) | 0.551″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.295″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.122″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IN2005 | Body Material | Carbide |
Product Features
| Family Description | LYEU14150IS-X | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.05
