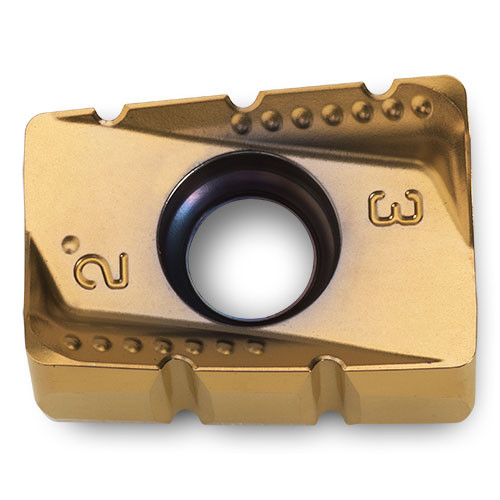

ZNHU160708R IN2530
Milling Insert; 0.59″ Length × 0.433″ Width × 0.417″ Thickness ; IN2530 ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Grade | IN2530 |
| Cutting Edge Length (L) | 0.59″ | Shape | Round |
| Insert Length (INSL) | 0.63″ | Insert Style | ZNHU160708R |
| Corner Radius (RE) | 0.031″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.433″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.417″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.055″ | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Steel |
Product Features
| Family Description | Integrated wiper flat on face for producing surface finishes as good as 40 Ra Designed for roughing multiple materials and applications 4 Indexes | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.033
