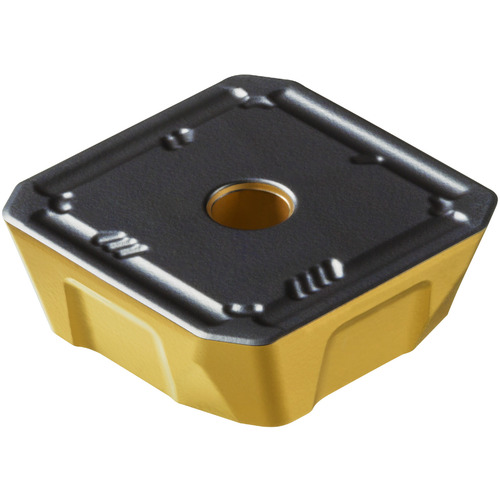

360R1906MPH 4220 Insert
Milling Insert; 15 mm Length × 6.35 mm Thickness ; 4220 ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | Hard Materials | | Grade | 4220 |
| Cutting Edge Length (L) | 15 mm | Shape | Square |
| Corner Radius (RE) | 1.6 mm | Insert Style | 360R-1906M-PH |
| Inscribed Circle Diameter (IC) | 18.94 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 6.35 mm | Chip Breaker Type | PH |
| Insert Included Angle (EPSR) | 30 Degrees | Cutting Edge Material | Carbide |
| Coating | | Al2O3 | TiN | TiCN | |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.633
