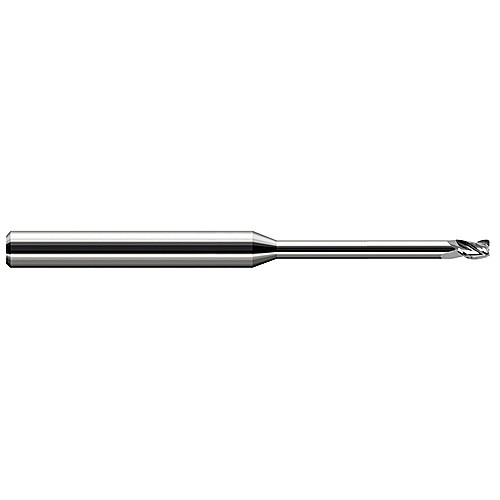

Miniature End Mills - Long Reach, Stub Flute - 0.0930″ (3/32″) Cutter Diameter × 0.0150″ (1/64″) Radius × 0.1390″ Length of Cut × 0.9500″ Reach Carbide Corner Radius End Mill, 3 Flutes
SQ End Mill; 3/32″ Dia. × 0.139″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 1/64″ RE ; 3 FL ; 0.95″ LBS ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/32″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 0.95″ |
| Depth of Cut Maximum (APMX) | 0.139″ | Corner Radius (RE) | 1/64″ |
| Overall Length (OAL) | 2-1/2″ | Length Group | 10D |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | Uncoated | Decimal Equivalent | 0.09375″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.016
