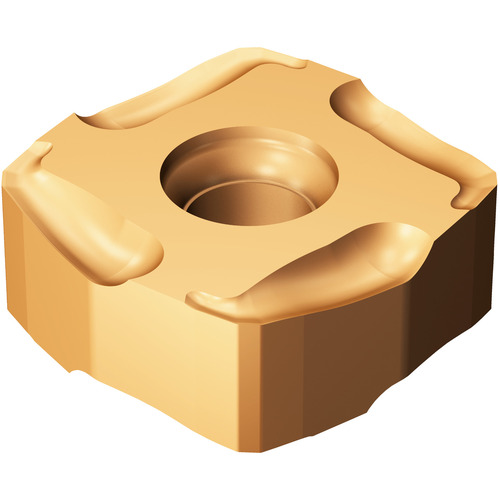

R3651505ZNEKL 1020 Insert
Milling Insert; 13.7 mm Length × 11.5 mm Width × 4.95 mm Thickness ; 4240 ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | 4240 |
| Cutting Edge Length (L) | 13.7 mm | Shape | Rectangle |
| Corner Radius (RE) | 6.35 mm | Insert Style | R331.1A-14 50 63H-WL |
| Insert Width (W1) | 11.5 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 14.5 mm | Chip Breaker Type | KL |
| Insert Thickness (S) | 4.95 mm | Hole Diameter | 4.6 mm |
| Insert Included Angle (EPSR) | 25 Degrees | Cutting Edge Material | Carbide |
| Coating | | Al2O3 | TiN | TiCN | |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
.362
