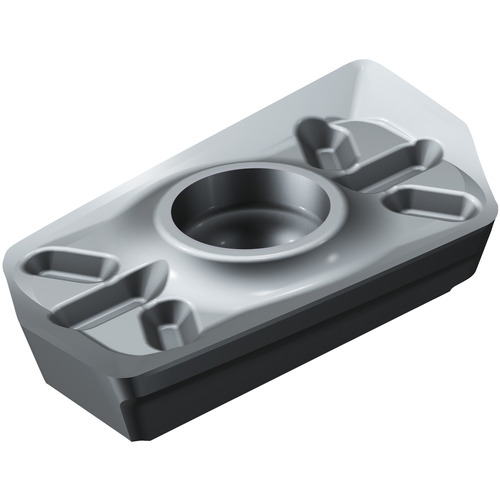

R790160431PHNL H13A Milling Insert
Milling Insert; 16 mm Length × 11 mm Width × 4 mm Thickness ; H13A ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | H13A |
| Cutting Edge Length (L) | 16 mm | Shape | Rectangle |
| Corner Radius (RE) | 3.1 mm | Insert Style | R790.16 04 31PH-NL |
| Insert Width (W1) | 11 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 11 mm | Chip Breaker Type | NL |
| Insert Thickness (S) | 4 mm | Hole Diameter | 4.09 mm |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
.205
